Production 10 tons limestone grinding powder production project

The company is a local building materials company engaged in the production and sale of limestone powder for a long time. The company adopts scientific management. Due to the development needs of the company, we need to develop high quality limestone products with good purity and fine particle size. After various understanding and field investigation, we are attracted by the professional technology and excellent process of Kolev Company, so we introduce advanced equipment and technology of our company and purchase the full set of limestone grinding production line of our company.

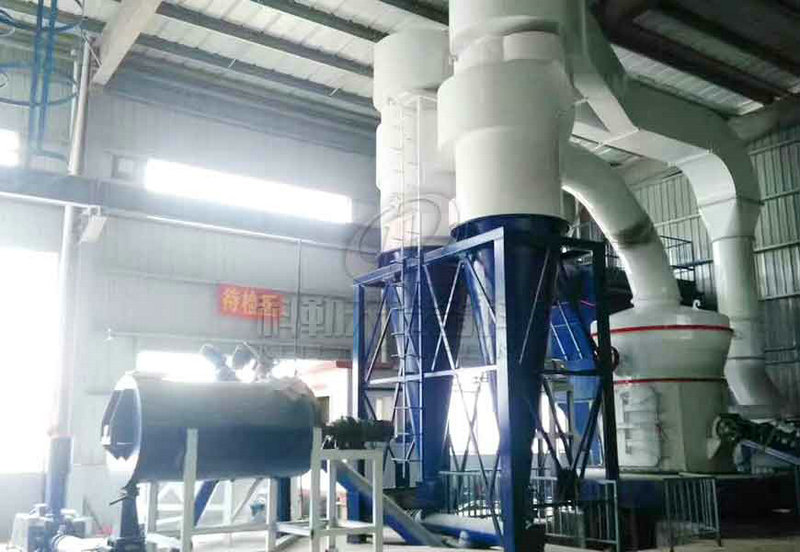

The production line of limestone grinding powder is composed of storage hopper, grinding main machine, feeding system, dust removal system, conveying system and electric control system, etc. The detailed technological flow is as follows: First, the limestone material is sent to the storage hopper, and then the feeder will evenly and quantitatively into the grinding room of the mill for grinding; The material after grinding is graded by the classification system, and the unqualified powder is graded by the classifier and returned to the main machine for re-grinding. The powder conforming to the fineness enters the dust collector with the air flow through the pipeline for separation and collection, and the collected finished powder is discharged through the discharge port; The whole grinding system is negative pressure circulation state, equipped with pulse dust removal device, environmental protection and no dust.

1: The overall production line has a high degree of automation and simple process. In addition to the startup, shutdown and daily maintenance of the equipment, there is almost no need for manual operation, which can save time and cost while ensuring the grinding efficiency. It is very suitable for the future development of the grinding market. 2: negative pressure work, energy saving and environmental protection, safety and stability, CNC frequency conversion, uniform fineness of finished products, adjustable particle size, through the screening rate of 99%, can meet the high grade building production material standards. 3: The grinding roller adopts oil-immersed lubrication system and Marine sealing device, greatly prolonging the service life of the mill. 4: The overall efficiency of the equipment is high, the operation is simple, the maintenance is convenient, the safety is stable, the cost performance is very high.
